Trackweigh®

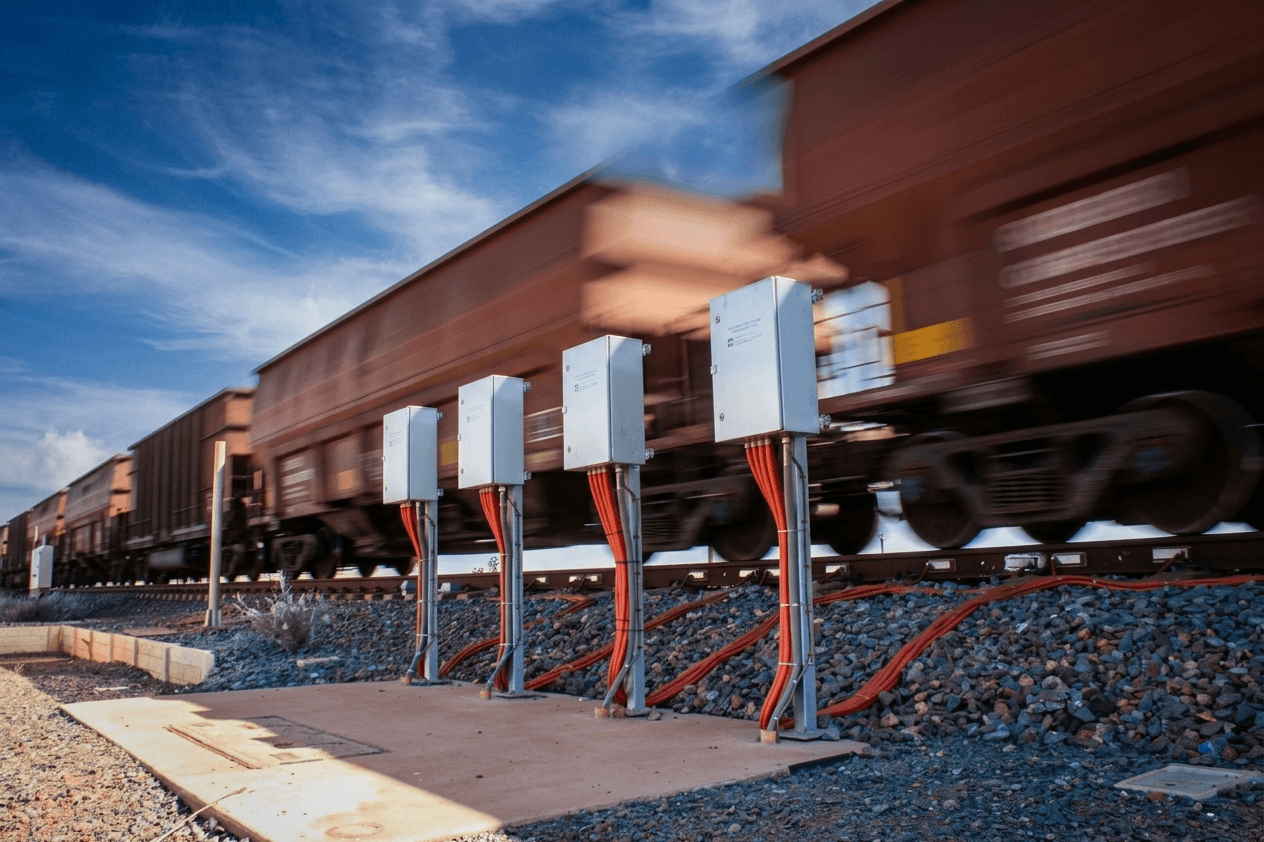

In-motion train weighing for coupled trains on continuous rail, including 1D, 2D, redundant and multi-point configurations.
Australian designed · rail weighing · loading control
Industrial weighing intelligence for rail and resource operations.
Meridian Engineers designs, installs and supports rugged in-motion weighing, train loading and data management systems for the resource industry.
1987 founded
100 km/h high-speed rail weighing
±0.1% target train load capacity
>99% System Availability Objective
Trusted across demanding mining, rail and bulk handling environments
Solutions
Australian Engineered weighing and loading systems for resource operations.
Heavy industrial weighing is what Meridian Engineers does.
We specialise in train weighing, train loading control and industrial measurement systems for rail, mining and bulk handling environments where accuracy, reliability and uptime are critical. Our systems are engineered in-house, proven on demanding resource sites and supported by people who understand the conditions they operate in.
Trust a company that has spent decades focused on the weighing and loading systems that keep heavy industry moving.

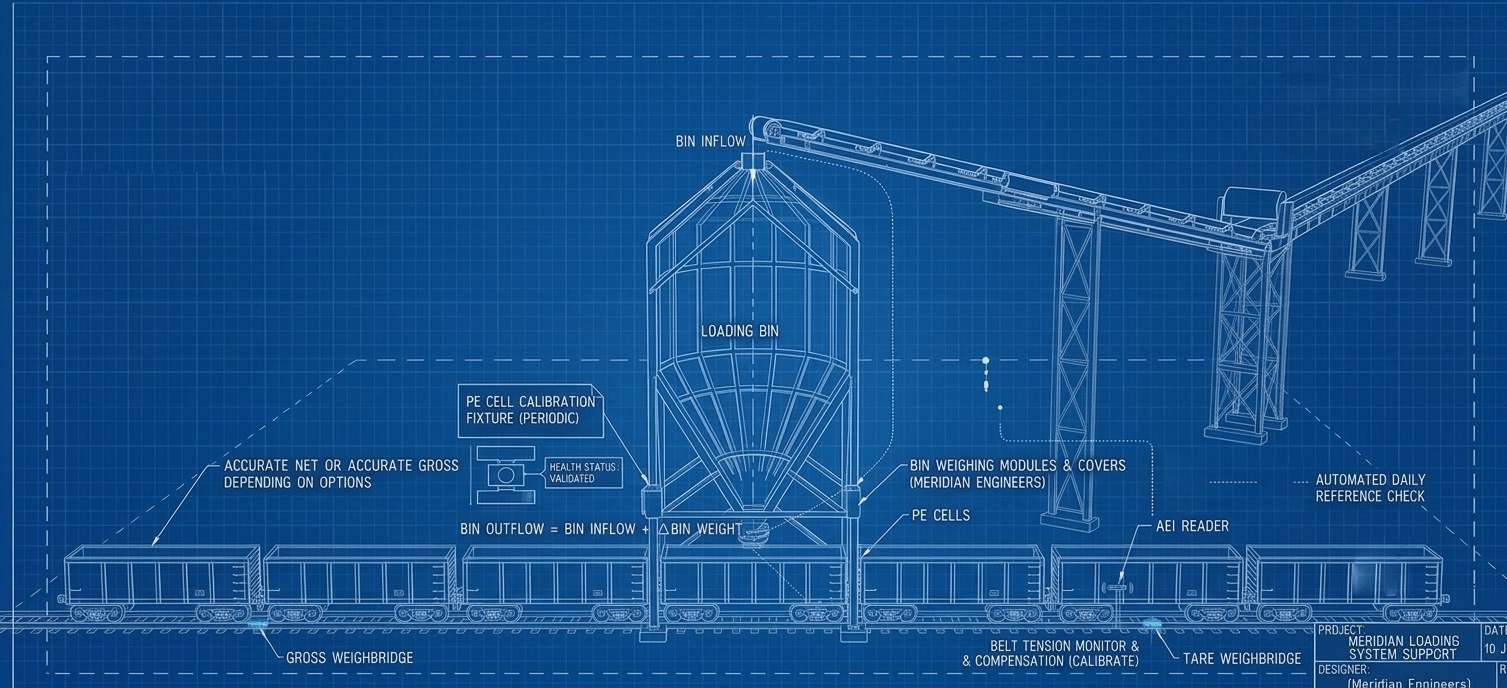

Train Loading Control Systems
Mass-based loading control to improve wagon consistency, reduce overload risk and provide accurate feedback to operators.
Columnweigh®
Bin and tank weighing systems built for heavy industrial structures, harsh environments and long-term reliability.
WDMS
Turning train data into usable operational intelligence.
EVERY
TRAIN
TONNE
TIME

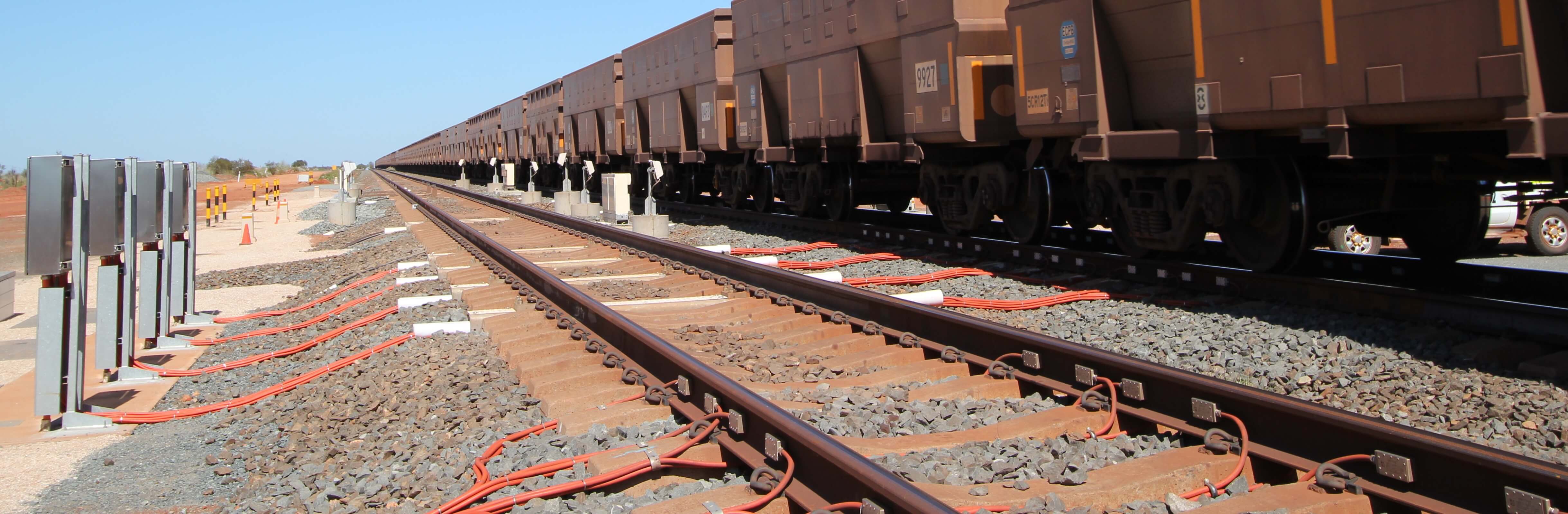

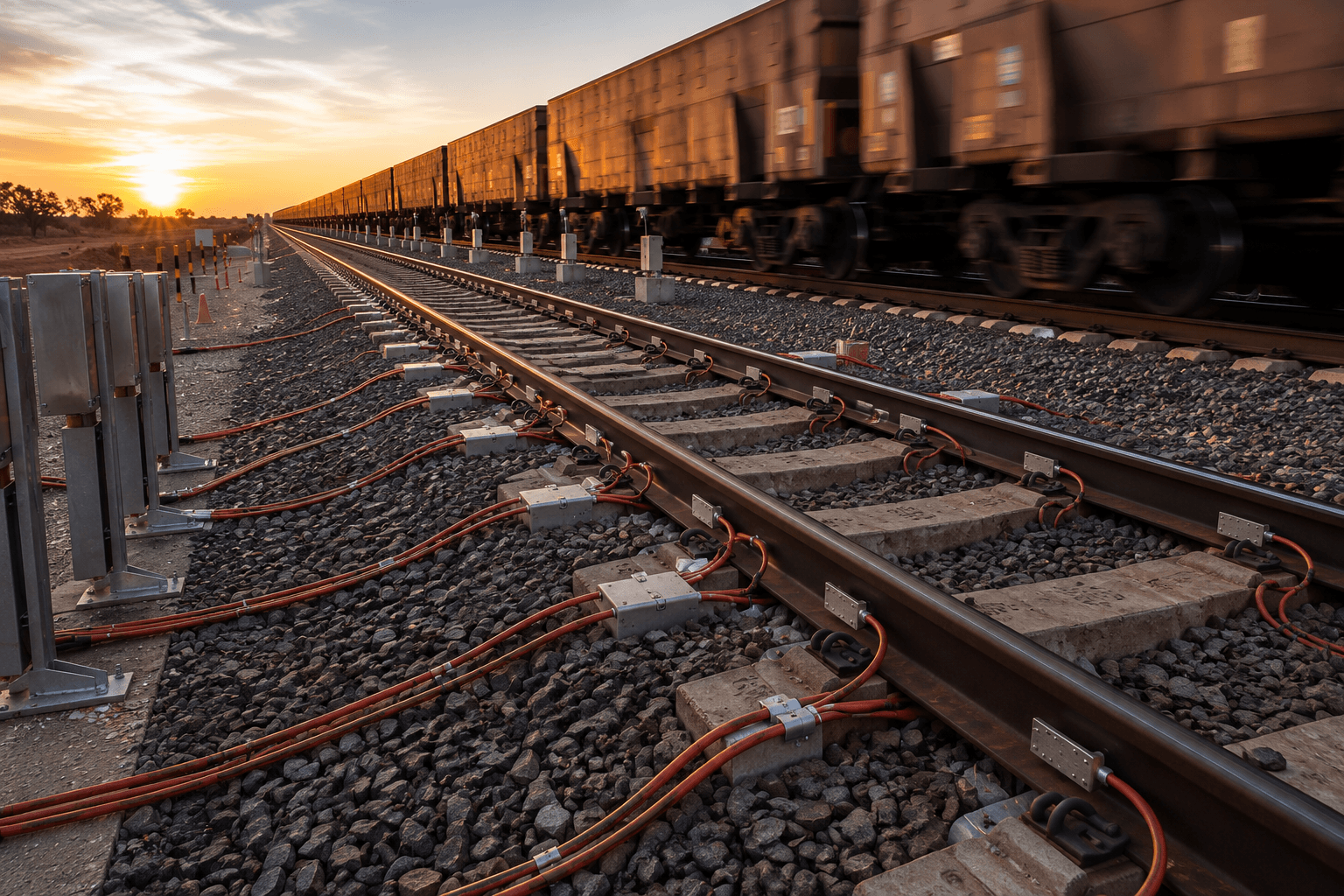

Trackweigh®
In-motion rail weighing without slowing the train.
Continuous-rail weighing systems for heavy-haul operations, built for high throughput, remote support and automatic train reporting.
Weighing speed up to
100 km/h
in-motion train weighing
Temperature range
-40⁰C to 80⁰C
for harsh environments
Train capacity
45,000+
tonne heavy-haul trains
Moving parts
ZERO
for rugged environments
Availability objective
>99%
for critical operating environments

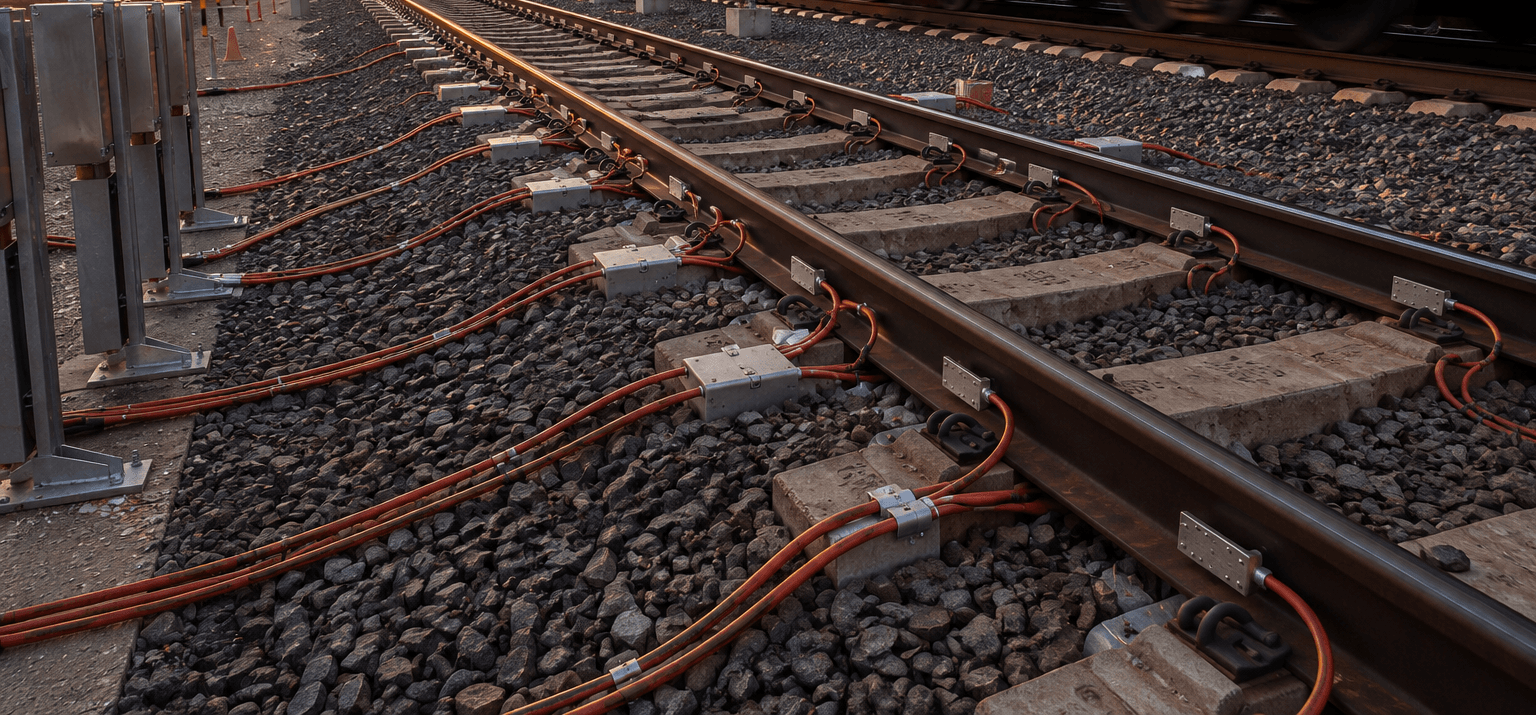

Rail weighing
Weigh trains in motion on continuous rail.
Heavy haul
Built for demanding rail environments.
Diagnostics
Remote visibility for support and reporting.
System Configuration
Scalable architecture for redundancy.

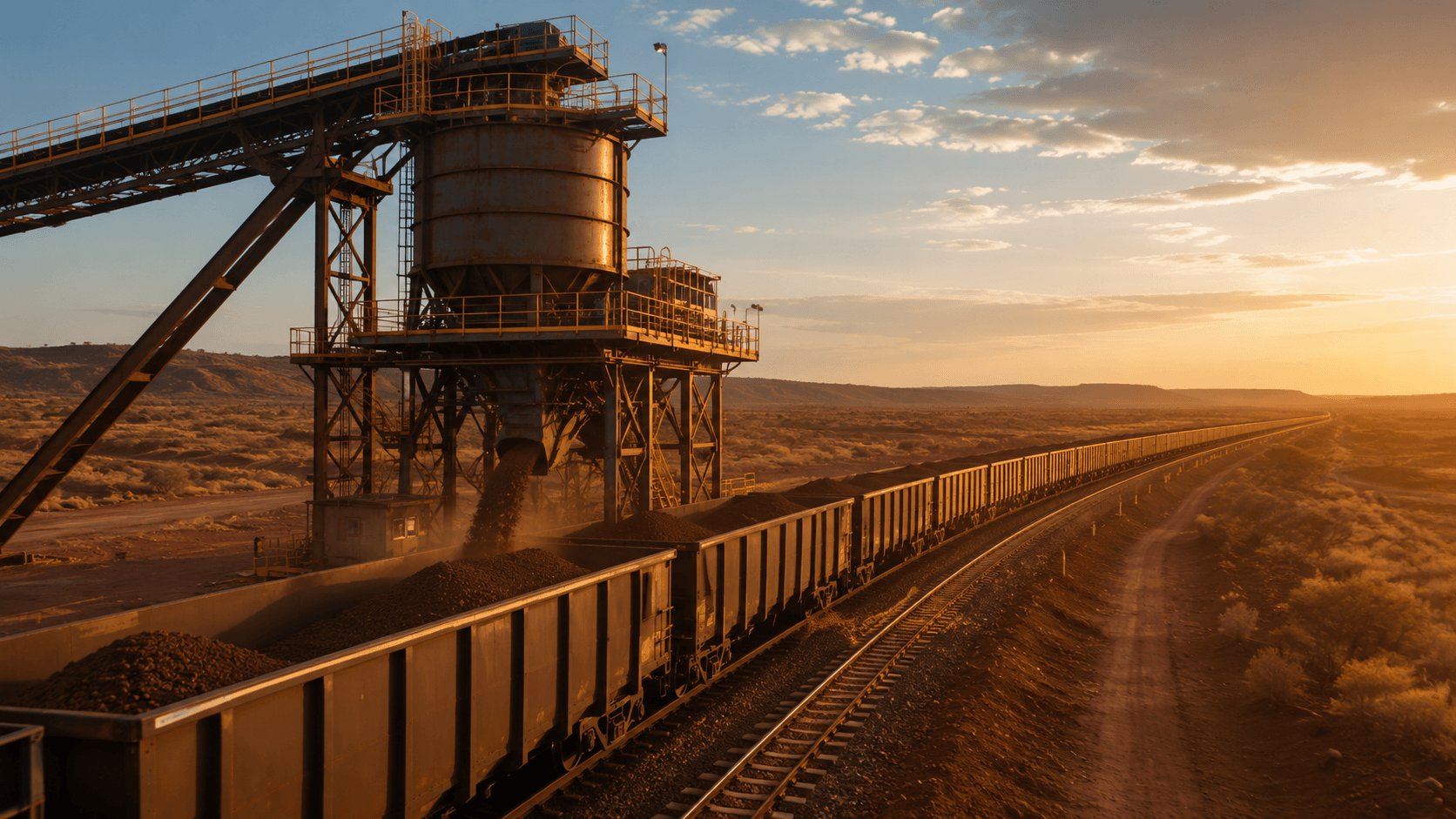

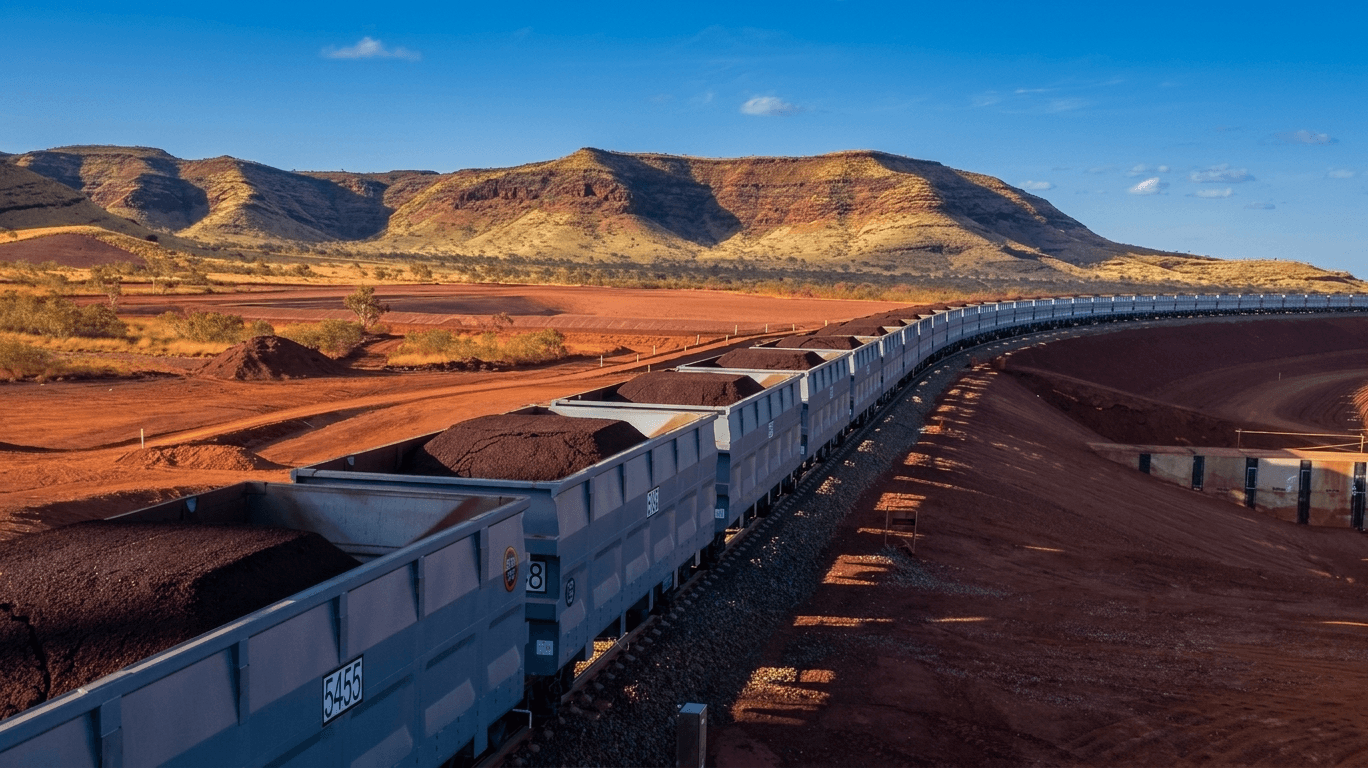

TLCS
Train loading control that improves consistency from pit to port.
Mass-based loading control and operator feedback to help reduce overload risk, improve target loading and make loading performance measurable.
Feed load rates up to
20,000
tonnes per hour
Target Load
±0.1%
train capacity
Wagon Load
<1%
SD objective
Availability objective
>99.9%
for critical operating environments
Loading control
Better wagon consistency during loading.
Operations
Clear feedback for loading operators.
Reliability
Designed for serious production environments.

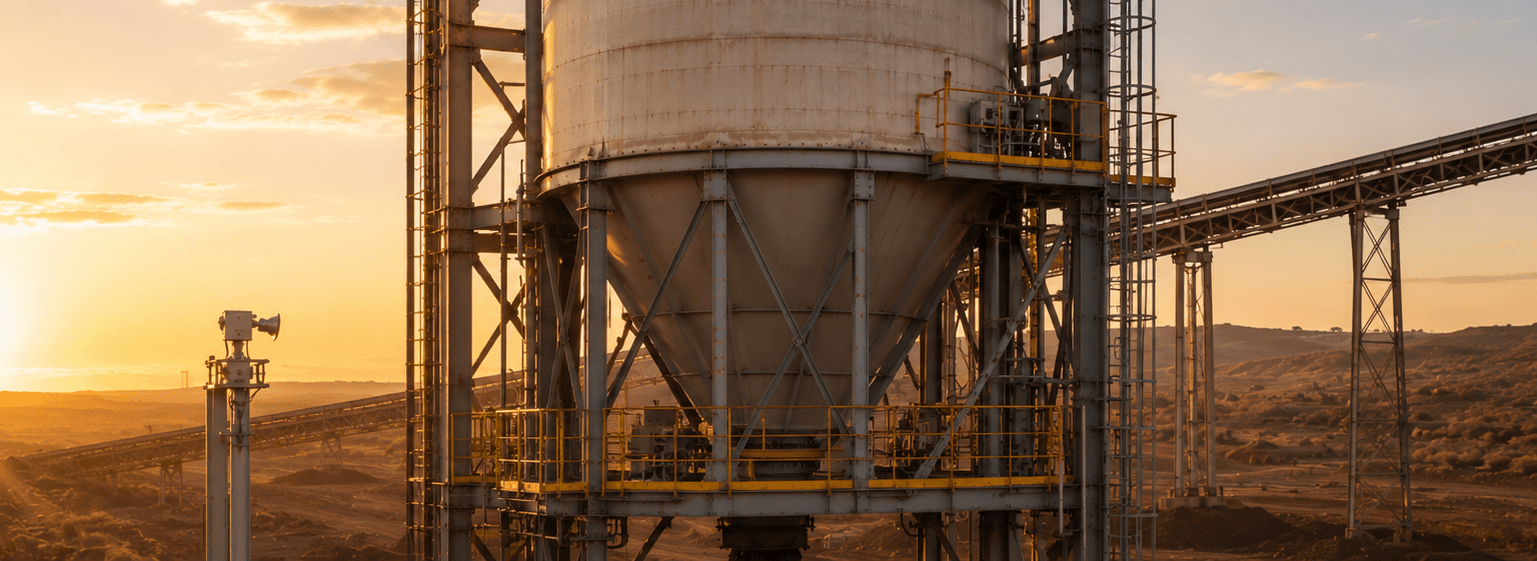

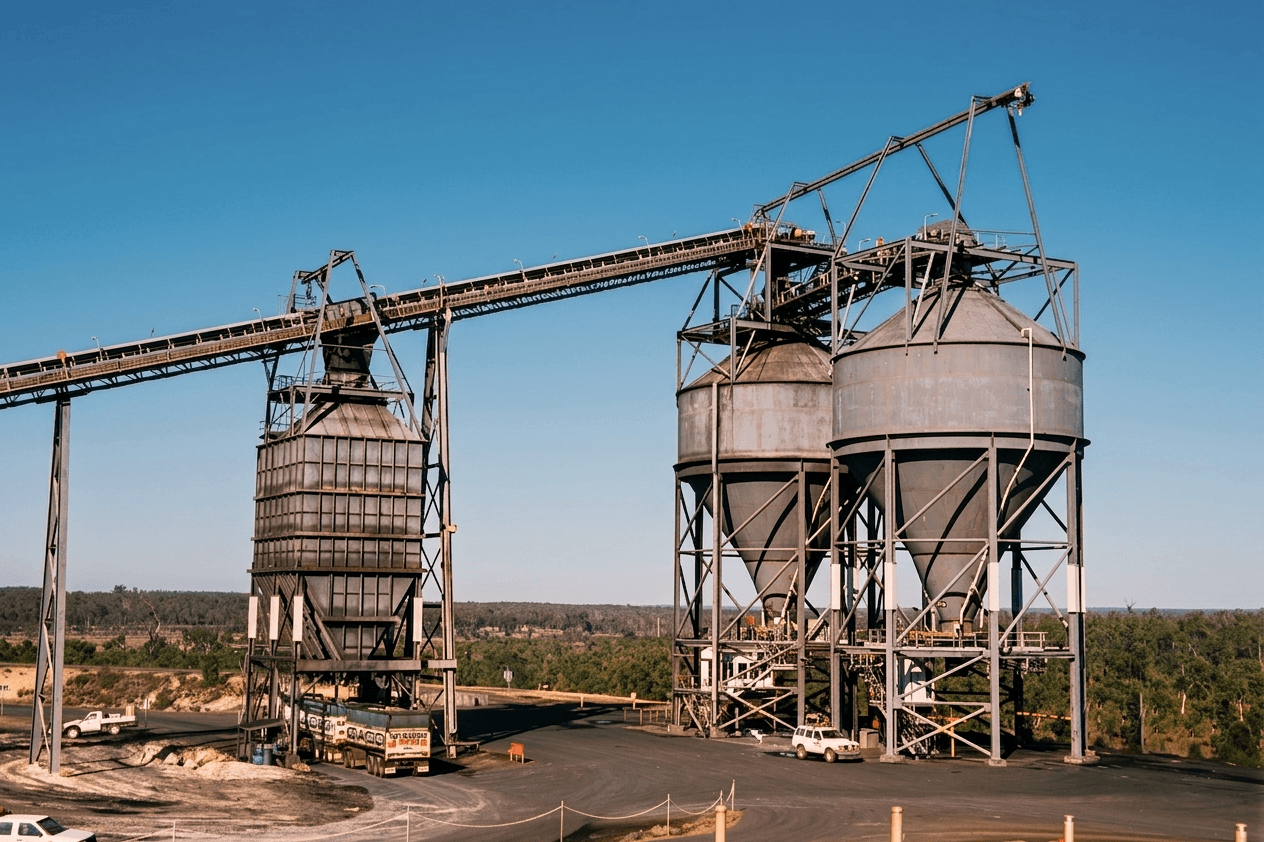

Columnweigh®
Structural weighing for bins, tanks and heavy industrial vessels.
Industrial weighing systems for harsh environments where structural reliability, repeatability and long-term support matter.
Batching Accuracy
<±0.5%
Temperature range
-40⁰C to 80⁰C
for harsh environments
Moving parts
ZERO
for rugged environments
Availability objective
>99.9%
for critical operating environments
Structural weighing
Measure heavy industrial structures with confidence.
Site conditions
Built around real industrial environments.
Support
Designed for long-term measurement support.

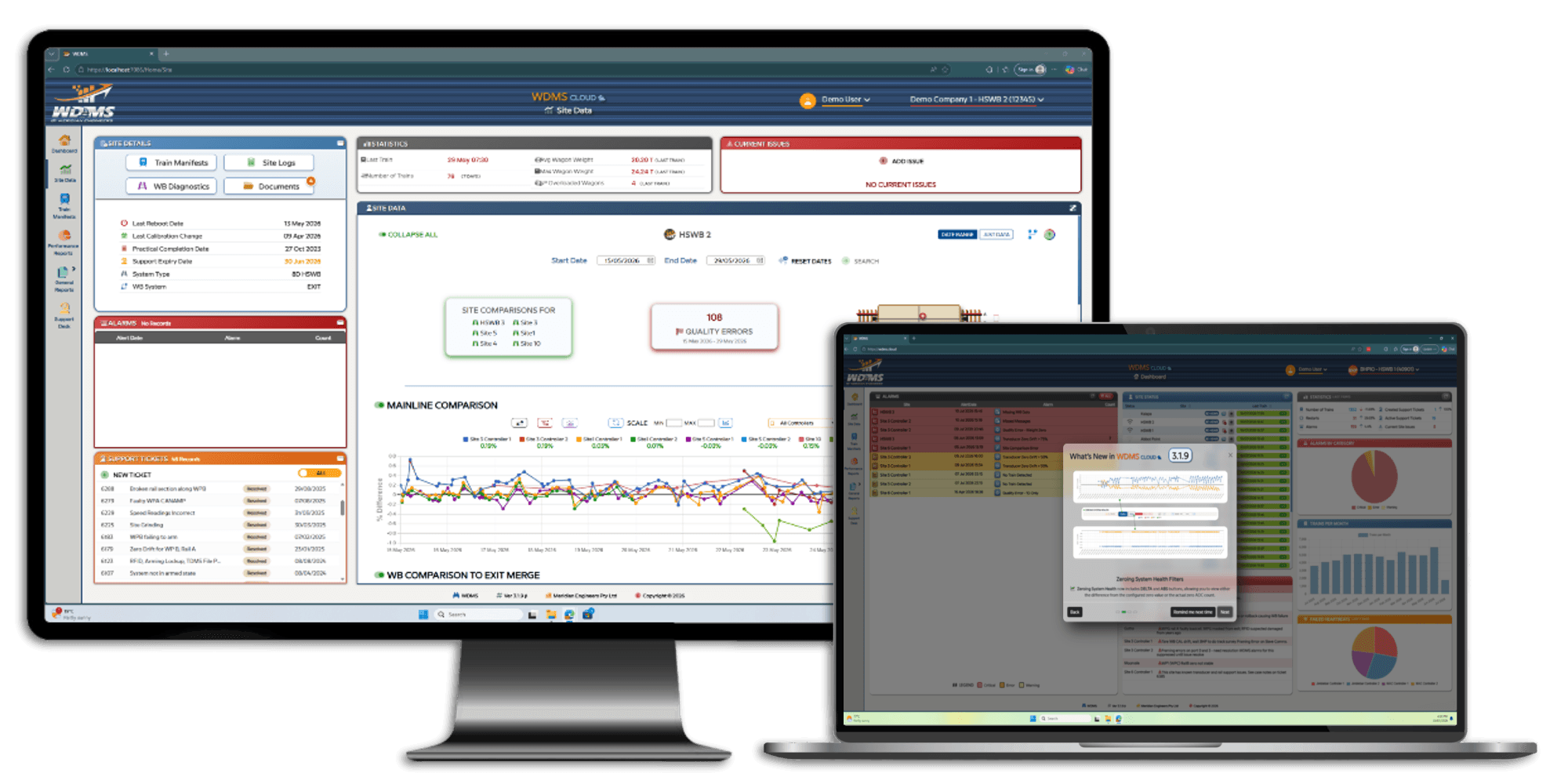

Operational Intelligence
Make every weighbridge visible, comparable and supported.
WDMS is Meridian's operational intelligence platform for connected weighing systems. Monitor performance, receive intelligent alarms, review calibration history and generate powerful reports—all from a single operational view. WDMS helps operators identify issues earlier, compare performance across sites and keep critical weighing infrastructure performing at its best.
Site Health
Intelligent Alarms

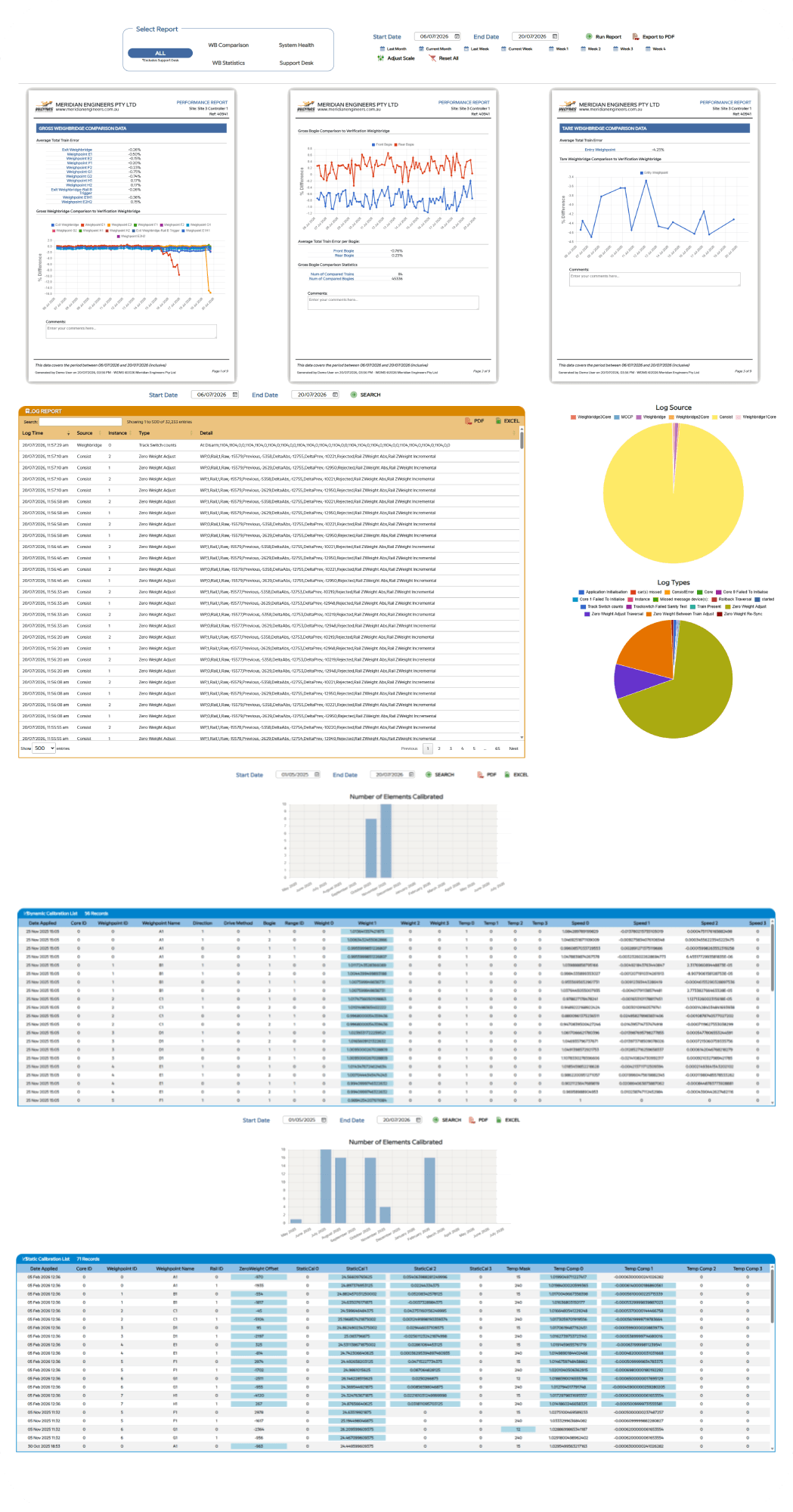

Reports

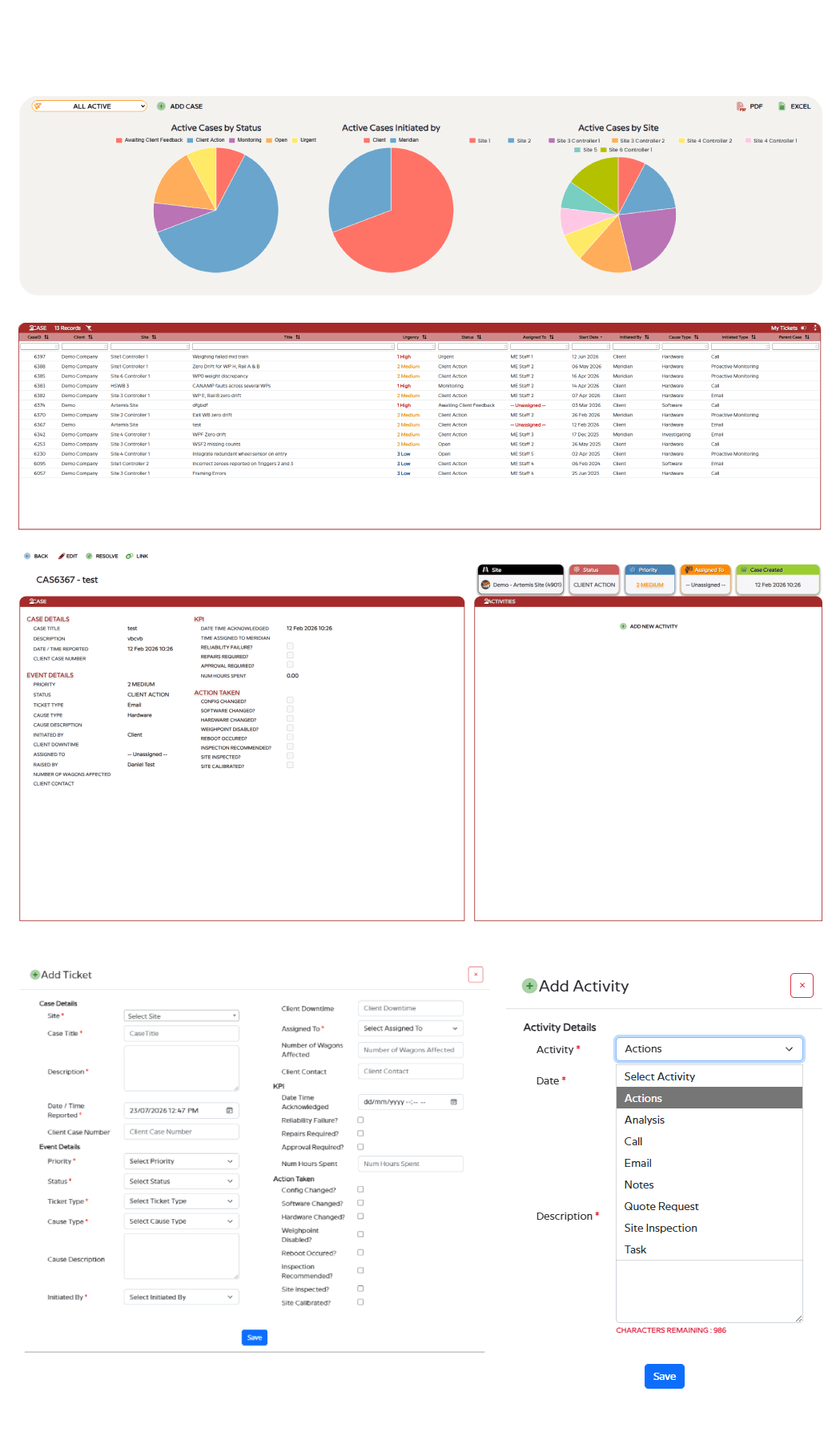

Support Desk
Technical Support
Support when your operation cannot wait.
Meridian technical support combines priority access to experienced engineers, remote diagnostics, preventative maintenance and WDMS visibility into one service designed to reduce downtime and keep critical weighing systems performing reliably.
24/7
Priority support
Remote
Diagnostics
Proactive
System health
Expert
Advice
Priority technical support
Priority response for operational issues, with clear escalation to the appropriate Meridian engineer.
Preventative maintenance
Scheduled health checks and maintenance reviews help identify emerging issues before production is affected.
Performance visibility
WDMS trends, alarms and calibration history provide the information needed to act earlier and plan maintenance.
Product engineering expertise
Access specialists who understand the hardware, software and operational environment.
The operational advantage
Move from reactive fault response to planned system care.
A support agreement gives your team a defined path to assistance, better system visibility and ongoing access to Meridian's product knowledge throughout the operating life of the system.
24/7 Technical support
Priority response and escalation
Proactive monitoring and health reviews
Reduced risk of extended unplanned downtime
Direct access to Meridian product specialists
Software updates
Remote diagnostics
Complementary WDMS licences

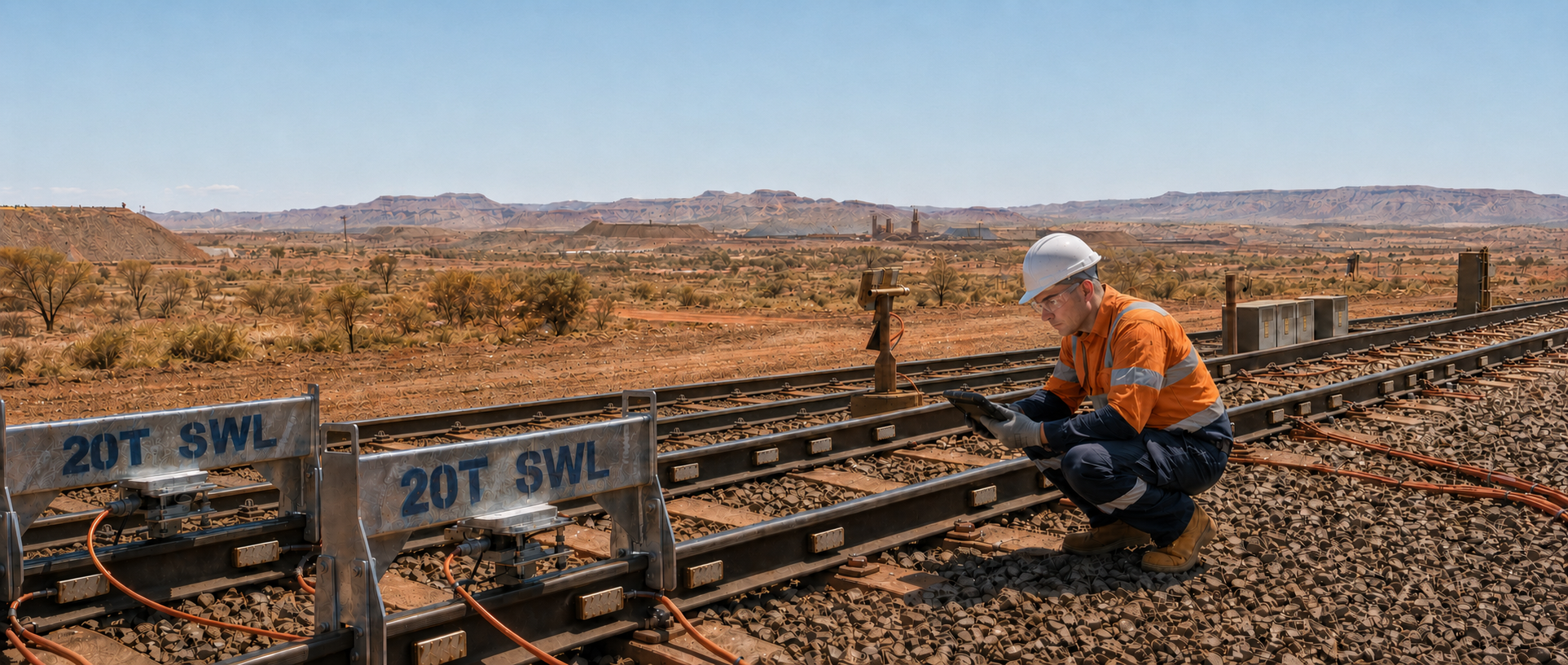

Meridian System Services
Comprehensive services that keep your weighing systems performing.
Meridian Engineers inspect and recalibrate the weighing systems to maintain accuracy, identify emerging issues and plan critical spares
Complete system inspections
Condition, performance and preventative maintenance assessments.
Complete system inspections
We conduct comprehensive inspections to assess the condition and performance of your weighing systems. We examine hardware, instrumentation, communications, software and system configuration to identify faults, component wear, calibration issues and emerging maintenance needs before they affect operations.
Static and dynamic calibrations
Accuracy verification under stationary and operating conditions.
Static and dynamic calibrations
We perform static and dynamic calibrations to verify weighing accuracy. Our technicians test system performance, calibrate sensors and make precise adjustments to ensure reliable measurements, maintain compliance and support long-term system accuracy.
Dedicated spares supply
Critical spares planning, procurement and inventory support.
Dedicated spares supply
We review your critical spare-parts inventory to identify replacement needs and reduce operational risk. Our recommendations cover parts selection, procurement and inventory planning, helping ensure essential components are available when needed to support maintenance and maximise system availability.
From inspection and accuracy verification to critical-spares planning, Meridian helps keep your systems ready for operation.
Resources
Technical resources for better weighing decisions.
Learn more about Meridian’s weighing, loading and monitoring systems with practical guides, product overviews and technical insights written for real industrial applications.
Careers
Careers at Meridian Engineers
For nearly four decades, Meridian Engineers has been delivering innovative engineering solutions to the resource industry. Our success is built on the expertise and dedication of our people. We're always looking for talented professionals who share our commitment to quality, innovation and exceptional customer service. If you're ready to work on challenging projects with a close-knit, highly skilled team, explore the opportunities to join Meridian Engineers.
Rail weighing
Weigh trains in motion on continuous rail.
The Meridian Trackweigh® system delivers high precision, in-motion weighing for rail logistics. Designed to keep operations moving without the need for trains to stop, the system automatically classifies car types, reads RFID tags, and captures weight data, down to the wheel level, as the train traverses the weighbridge.
Key capabilities:
Dynamic Weighing.
Real time weight measurement of locomotives and wagons while in motion.
Automated Identification.
Integration with RFID technology to accurately identify individual cars and link them to tare weight data.
Precision Processing.
The Railmaster® software performs complex compensations for speed, temperature, and rail axial load to ensure highly accurate results.
Comprehensive Data.
Provides detailed reporting including wagon, bogie, and over-coupler weights, along with cumulative train statistics.

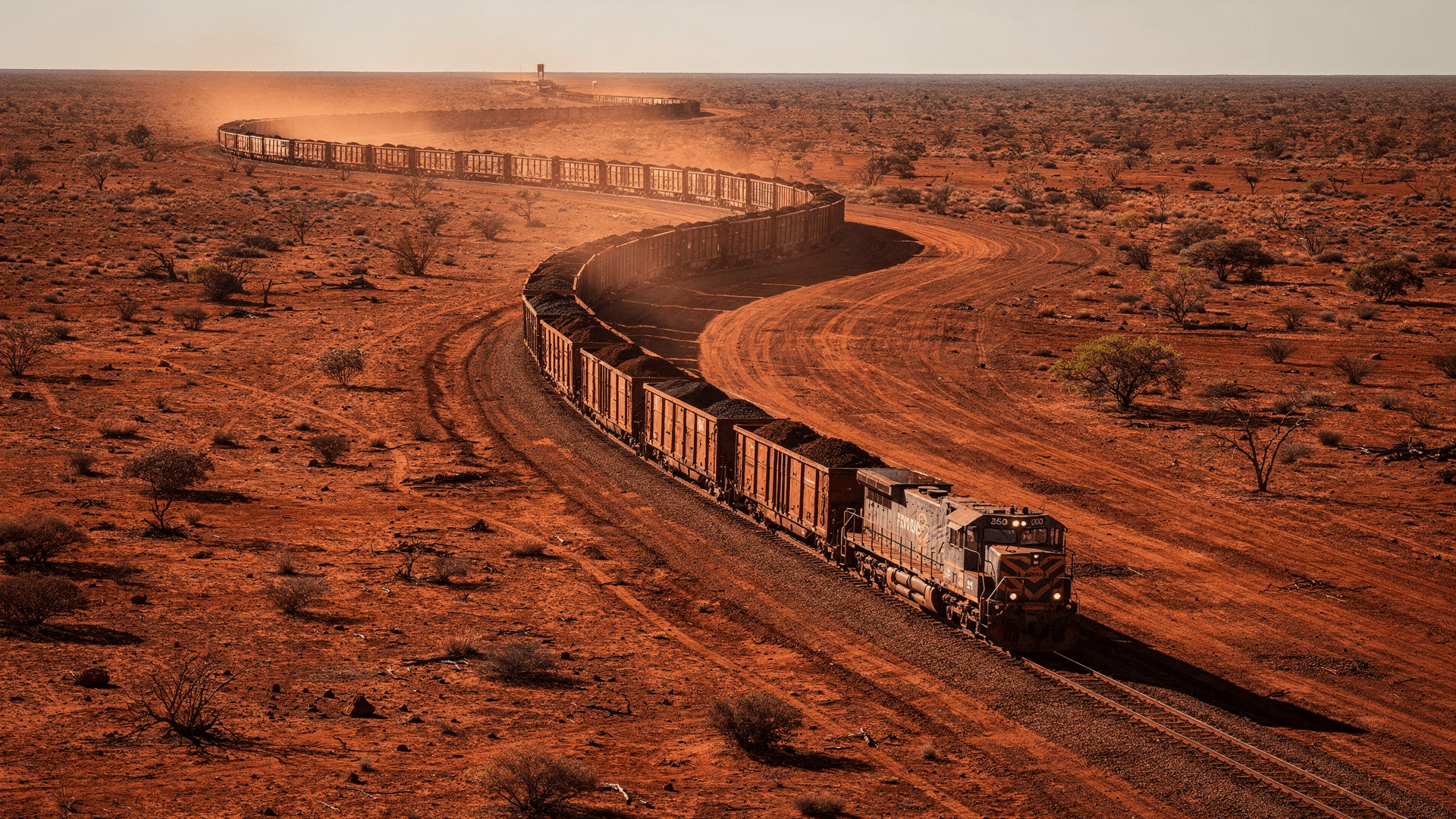

Heavy haul
Built for demanding rail environments.
Engineered for the most demanding rail environments, our Heavy Haul solutions prioritise durability, reliability, and accuracy under extreme conditions. The system utilises robust ME-Boltweigh transducers that are bolted directly to the rails, ensuring longevity even in high-impact settings.
Key capabilities:
Environmental Resilience.
Trackside equipment is designed to operate within a temperature range of -40°C to 80°C and meets strict IP66/IP67 environmental requirements.
Reliable Hardware.
Each weighing point utilises eight transducers, ensuring consistent data capture regardless of heavy load cycles.
Redundancy Options.
For mission critical sites, we offer "xD-FR" redundant systems which duplicate weighing points, controllers, and power supplies to eliminate single points of failure.
Advanced Protection.
Systems include lightning protection and shielded cabling to minimise interference and protect electronics from harsh industrial environments.

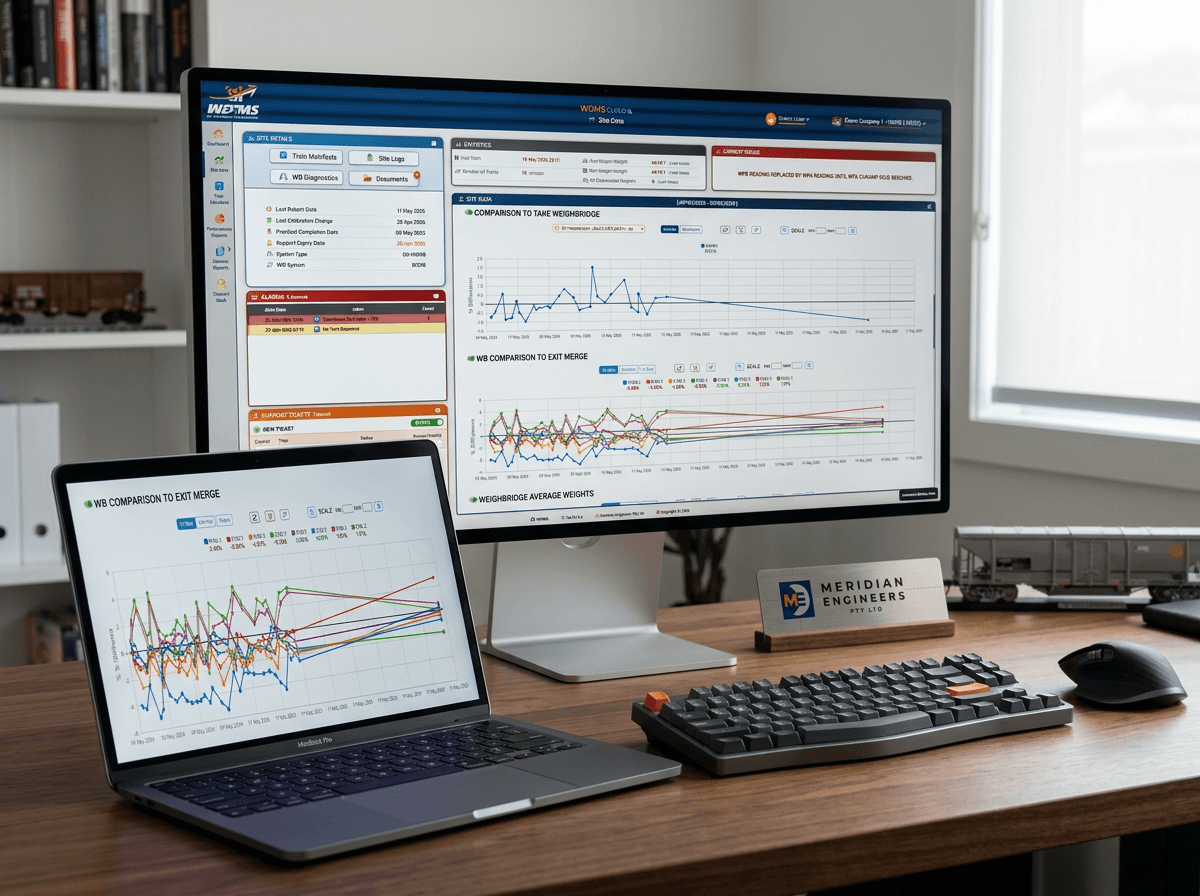

Diagnostics
Remote visibility for support and reporting.
Maintaining operational uptime is effortless with our advanced diagnostic suite. The system provides remote visibility and deep insight into the health of your weighing infrastructure, allowing for proactive management and rapid issue resolution.
Key capabilities:
Remote Web Interface.
View real-time system status, weighing progress, and train details through a standard internet browser from anywhere on your network.

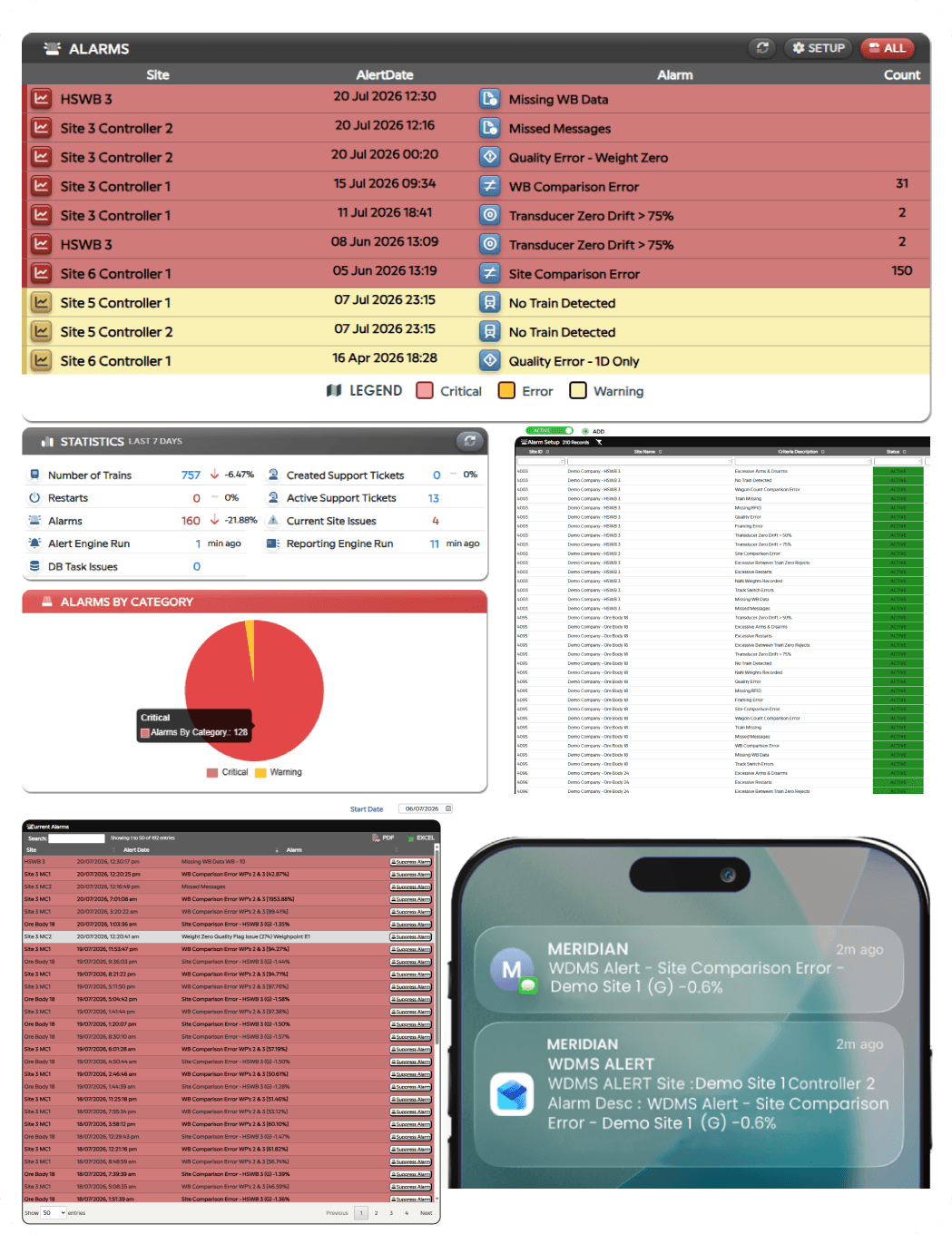

Intelligent Alarm System.
Multi-tiered alarming (Warning, Error, Fault) flags issues instantly, with "Fault" severity alarms capable of automatically ceasing operations to prevent data corruption.
Remote Support.
Equipped for remote troubleshooting, including the ability to remotely reboot equipment via Ethernet-connected power control units.
Reporting & Logging.
Automated generation of diagnostic reports and event logs that provide the data necessary for system monitoring and tuning.

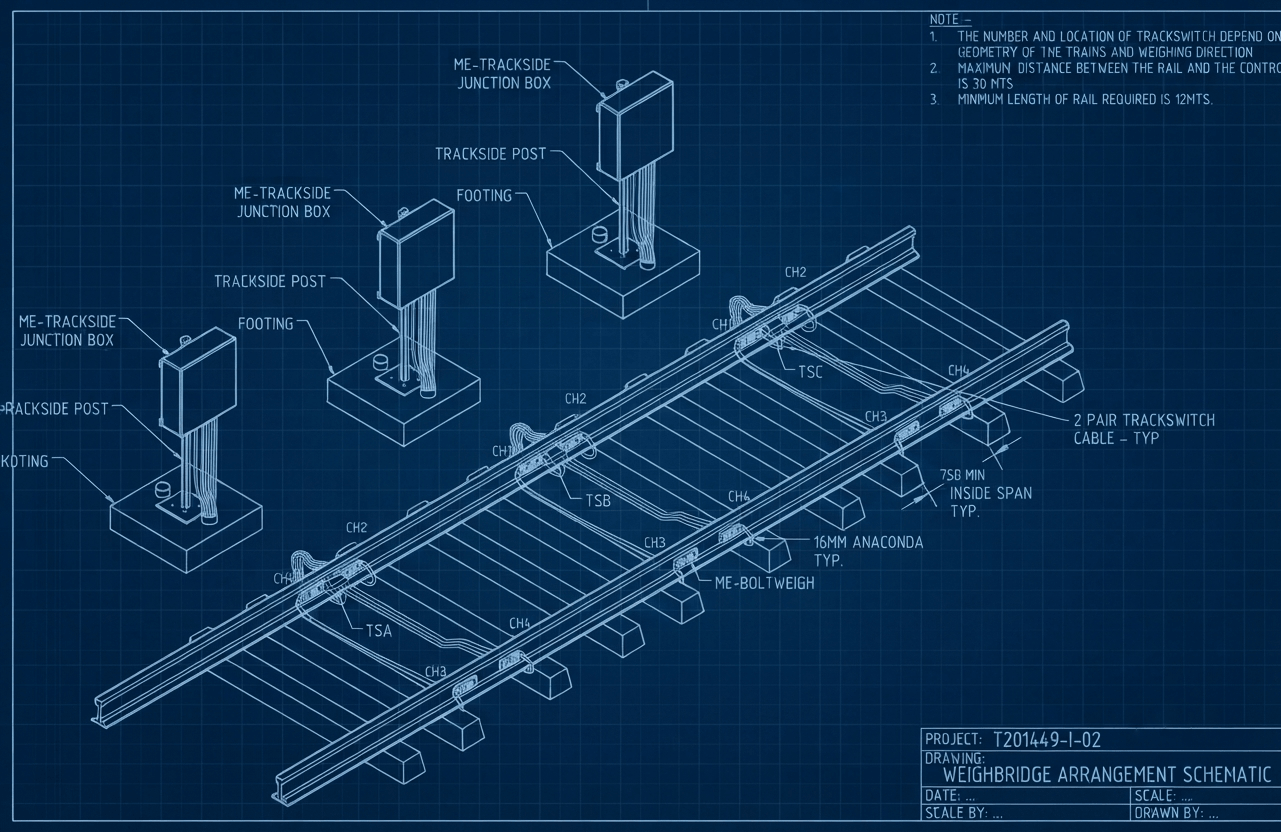

System Configuration
Scalable architecture for redundancy.
We offer a versatile range of in-motion train weighing systems, scalable to meet specific operational requirements, from single point setups for general use to high speed, multi weighing point configurations for high capacity and reference sites.
Across all Trackweigh® models, Meridian Engineers delivers a robust, high capacity weighing solution engineered for demanding rail environments. Each system shares identical structural load limits, supporting axle capacities up to 45 tonnes (100,000 lbs) and wagon weights up to 180 tonnes (400,000 lbs). Designed to perform reliably in extreme conditions, all models feature built-in temperature compensation, operating effectively between -40°C and 80°C (-40°F to 180°F) in humidity levels ranging from 10% to 90% non-condensing, backed by an E2 electromagnetic rating. For seamless site integration and data management, every model features HTTP web interfaces, Modbus Ethernet or Serial communications, full compatibility with the Weighbridge Database Management System (WDMS), and essential core functionalities such as overload detection, over speed detection, and optional RFID wagon tagging.
FR
Fully Redundant
D
Number of Weighing Points
1D-FR / 2D
Entry Level
Weighing Points
2
Maximum Speed
50 km/h
Train Weight Accuracy
0 – 20 km/h
±0.2%
0 – 50 km/h
±0.5%
Wagon Weight Accuracy
0 – 20 km/h
±0.6%
0 – 50 km/h
±1.0%
Fully automatic in-motion weighing for general rail applications.
2D-FR / 4D
Mid Level
Weighing Points
4
Maximum Speed
50 km/h
Train Weight Accuracy
0 – 20 km/h
±0.1%
0 – 50 km/h
±1.0%
Wagon Weight Accuracy
0 – 20 km/h
±0.25%
0 – 50 km/h
±2.0%
Enhanced precision for higher throughput operations.
4D-FR / 8D
High Capacity
Weighing Points
8
Maximum Speed
100 km/h
Train Weight Accuracy
0 – 100 km/h
±0.5%
Wagon Weight Accuracy
0 – 100 km/h
±1.0%
Designed for high-speed, high-capacity heavy-haul operations.

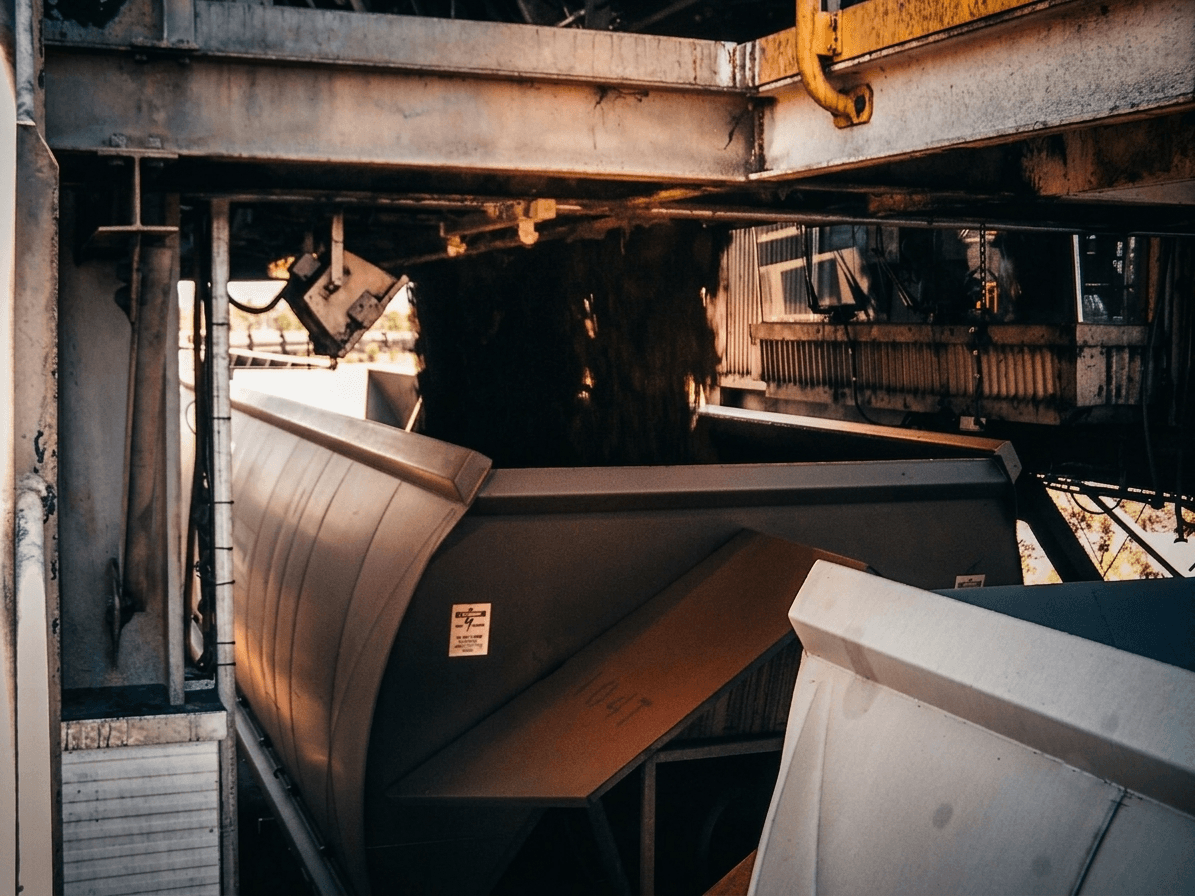

Loading control
Better wagon consistency during loading.
The TLCS system streamlines the loading process by replacing traditional weigh-hoppers with a simplified bin architecture to achieve precise, mass-controlled wagon loading.
Key capabilities:
Mass-Controlled Performance.
Converts standard volumetric loading into mass-controlled performance, allowing for improved load accuracy without the complexity or height penalties of a traditional weigh-hopper arrangement.
High Accuracy.
Capable of loading trains to within ±0.1% of the target load, provided there is sufficient volumetric capacity and suitable site conditions.
Improved Consistency.
Delivers superior wagon consistency, with a wagon load standard deviation objective of less than 1%.
Simplified Infrastructure.
Utilises a single surge bin and loading gate architecture, removing the need for a weigh-hopper beneath the bin.

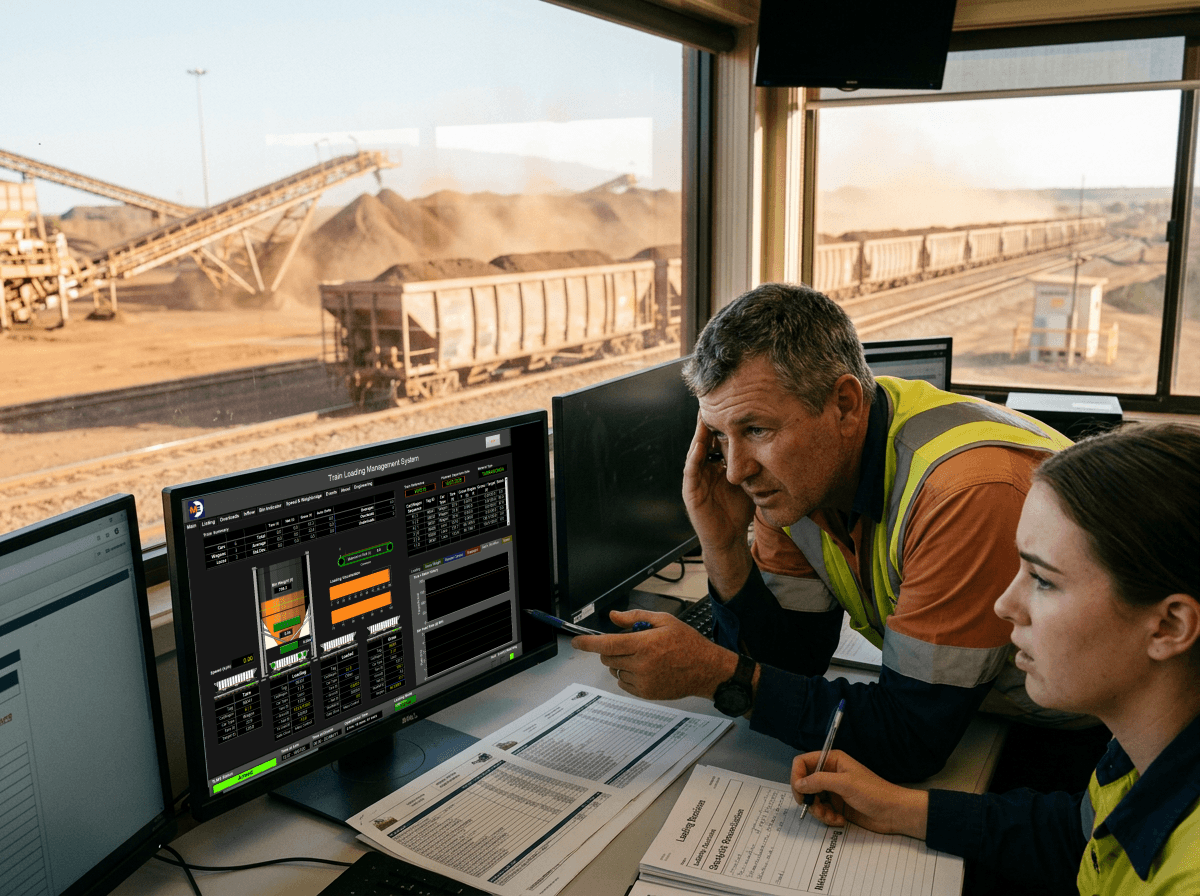

Operations
Clear feedback for loading operators.
It provides operators with real-time process monitoring, automated reporting, and system health tracking through an integrated interface.
Key capabilities:
Real-time Visibility.
Provides continuous real-time measurement, wagon tracking, and train speed/position tracking under the loading bin.
Railmaster® Interface.
Features a dedicated Windows GUI that allows operators to monitor loading progress, results, and outputs in real-time.
Automated Reporting.
Generates comprehensive, automated reports including train manifests, net weights, and comparison data.
System Integration.
Seamlessly interfaces with plant controls, providing direct gate open/close signals to external PLC/SCADA systems.
Proactive Health Monitoring.
The Weighbridge Data Management Software (WDMS) monitors system health, including transducer zero drift, quality errors, overloaded bogies, and missing logs, to ensure operational transparency.
Reliability
Designed for serious production environments.
Designed for demanding mining environments, the system emphasises durability, ease of maintenance, and environmental resistance. It offers a robust hardware solution that can be integrated into existing infrastructure without significant operational disruption.
Key capabilities:
High Availability.
Engineered for heavy-haul throughput with a system availability objective of greater than 99%.
System Redundancy.
Includes options for redundant systems and Uninterruptible Power Supply (UPS) configurations to minimise downtime.
Robust Maintenance Support.
Offers ongoing maintenance support packages, including monthly remote system checks, annual reviews, software updates, and priority fault response.
Versatile Implementation.
Suitable for both brownfield and greenfield installations, with support for multiple weighing points, net weighing, and dual gauge configurations.

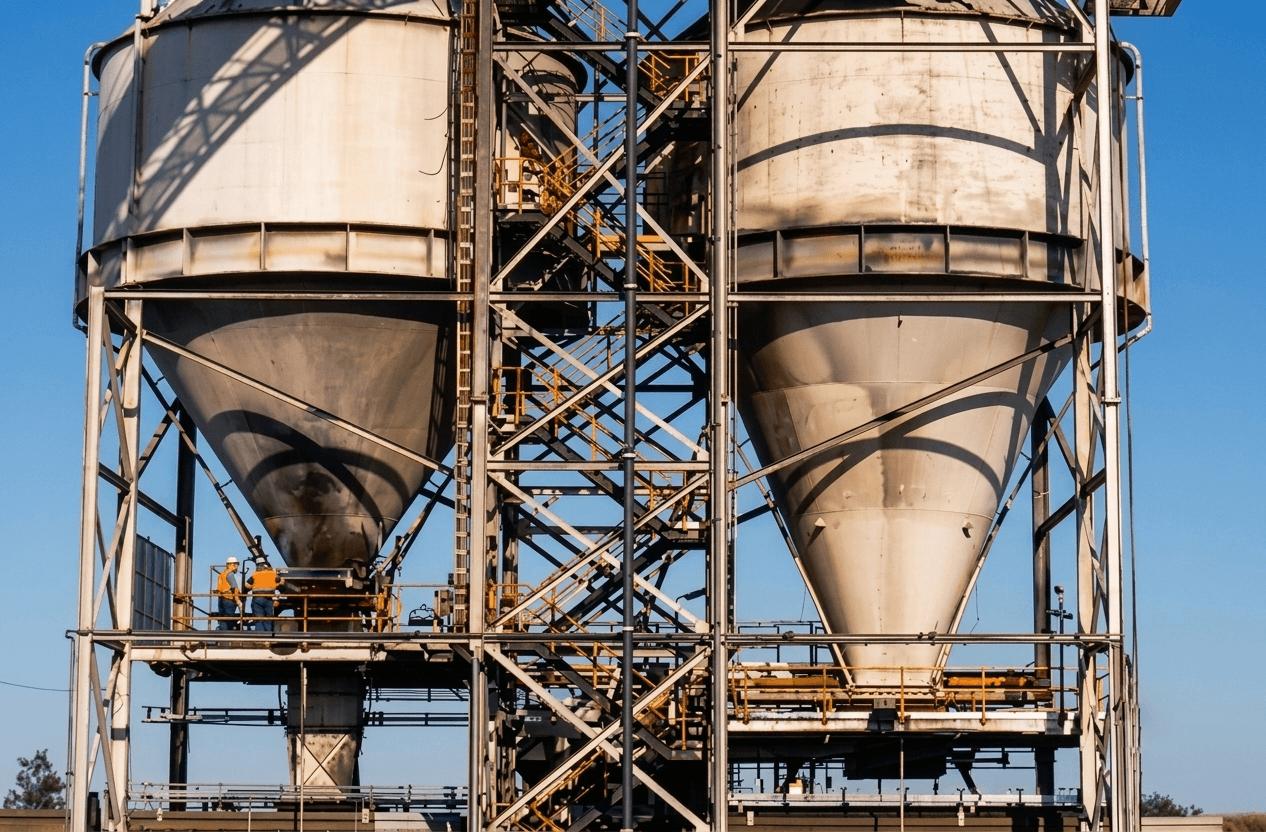

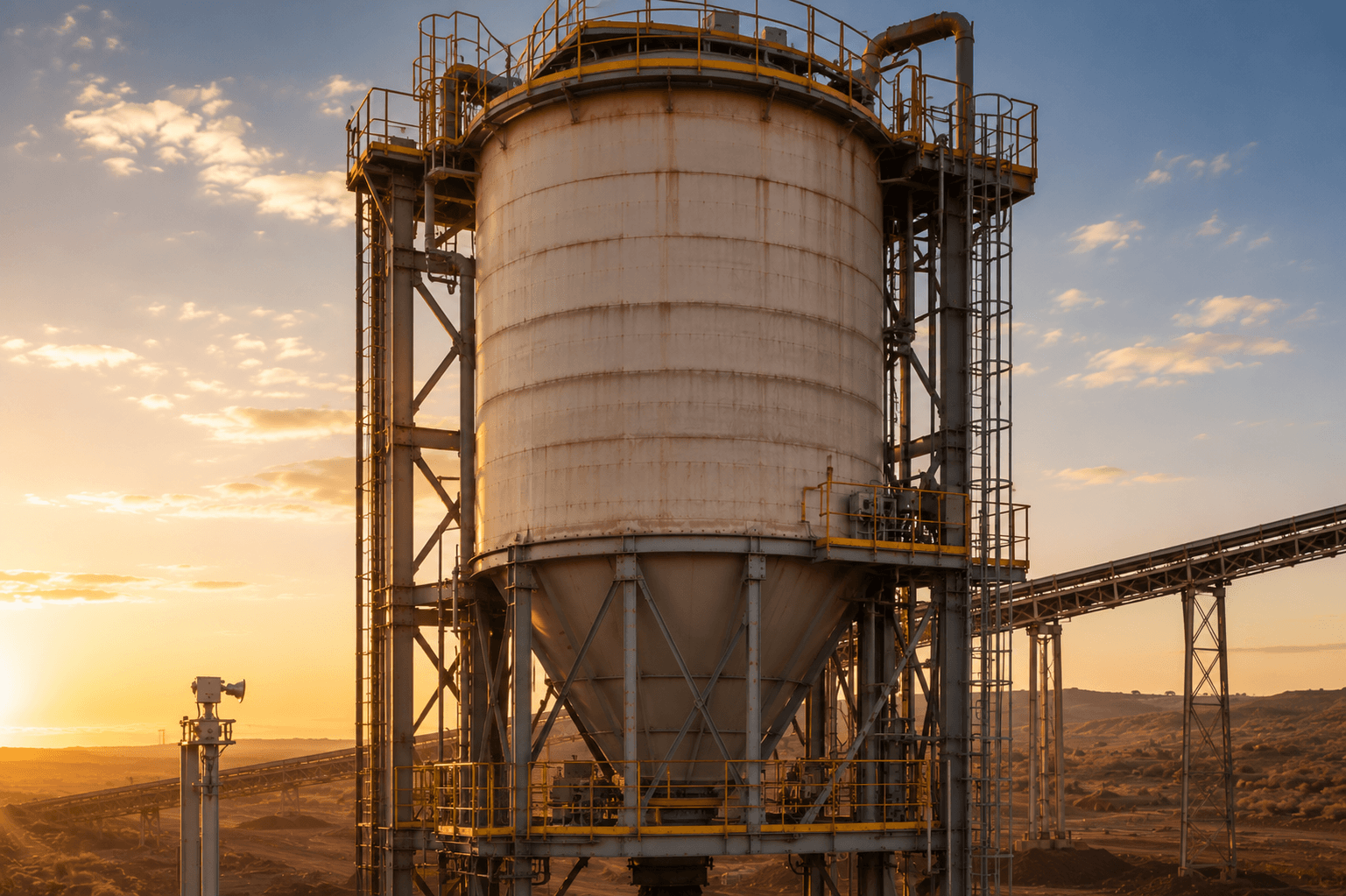

Structural weighing
Measure heavy industrial structures with confidence.
The ME-Binweigh system provides accurate, real-time mass indication for bins, silos, and tanks by converting existing structural supports into in-situ load cells.
Key capabilities:
Advanced Transducer Technology.
Utilises ME-Columnweigh transducers to transform structural supports into load cells.
Durable Design.
Constructed with no moving components, ensuring longevity in industrial use.
Versatile Implementation.
Can be retrofitted to existing structures or utilised in new installations with an easy installation process.
System Accuracy.
1% to 5%, structure dependant. Batching < 0.5%
Site conditions
Built around real industrial environments.
Engineered for resilience, the ME-Binweigh system is built to function reliably in challenging, rugged industrial environments.
Key capabilities:
Environmental Durability.
Designed for operational reliability in diverse conditions, supporting temperatures ranging from -40°C to 80°C and 10% to 90% relative humidity (non-condensing).
Inbuilt Compensation.
Features integrated temperature compensation to maintain measurement stability.
Efficient Power Usage.
Operates with low power consumption, requiring a maximum of 150 W.
Flexible Power Options.
Supports input requirements of 240 V AC (50/60 Hz) or 24 V DC.
Support
Designed for long-term measurement support.
This component is engineered to provide sustained, long-term measurement reliability through advanced software management and robust system integration.
Key capabilities:
Reliable Software Architecture.
Operates on the Labview RT operating system and leverages Railmaster® weighing software to ensure consistent, long-term data processing and accuracy.
Flexible System Integration.
Offers multiple interface options to allow for seamless, enduring integration with broader plant control systems.
Operational Intelligence.
Enhances long-term system utility by providing structural safety alerts and stop reclaim determination capabilities when paired with a TLMCS.
WDMS

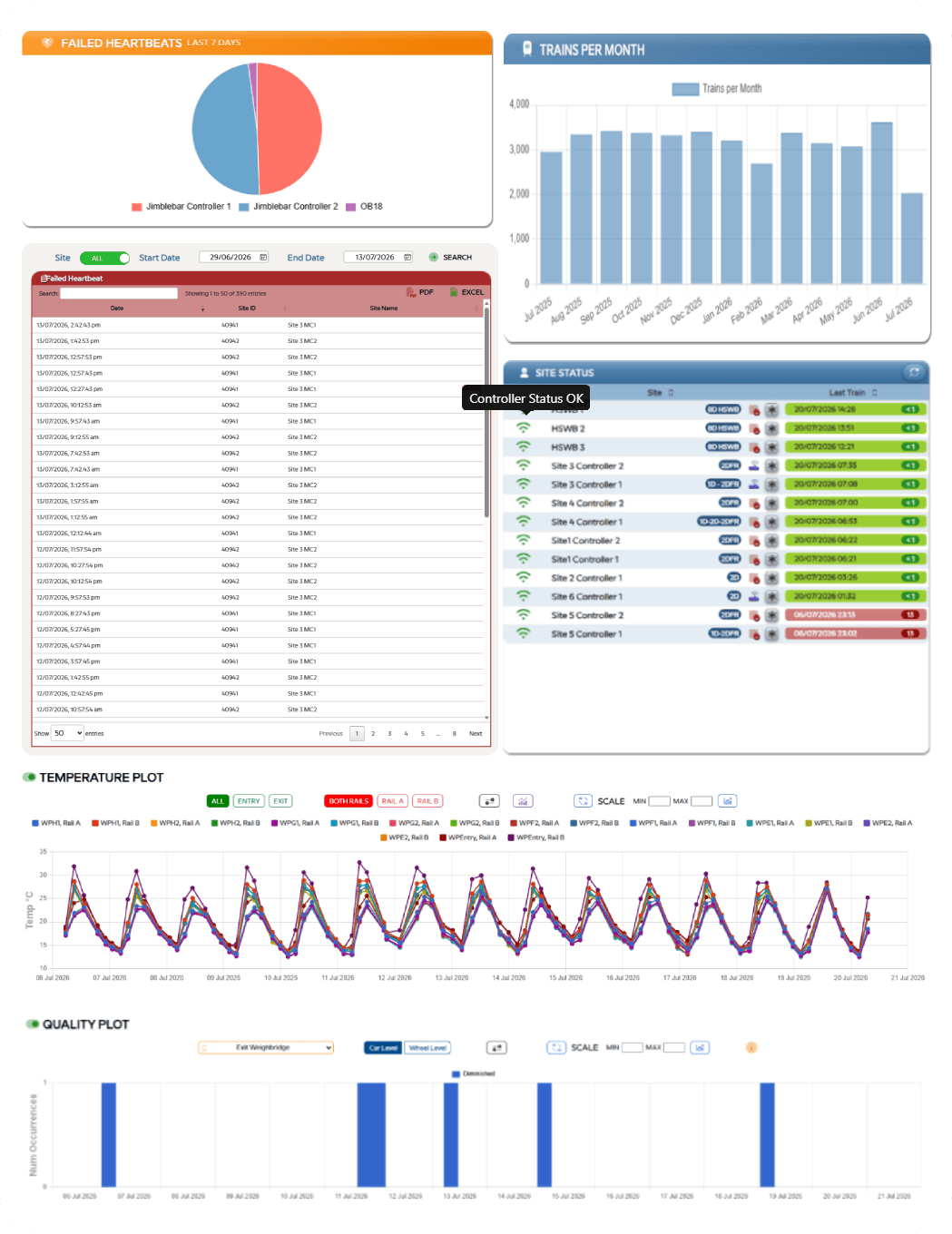

Site Health.
The Site Health module serves as the primary dashboard for monitoring the operational status of your weighbridge infrastructure. It provides a real-time overview of all connected sites, ensuring you always know the status of your remote assets.
Near Real-Time Status Monitoring.
Provides a near real-time overview of train movements, weighing progress, system status, and operational performance through an intuitive interface.
Heartbeat Polling.
The system automatically polls the connection to every site controller every 5 minutes to ensure continuous operational visibility.
Comprehensive Diagnostics.
Gain a complete view of system health with performance trends, calibration history, reboot records, hardware diagnostics and software version tracking. By identifying changes over time, not just current status. WDMS helps engineers detect emerging issues early, reduce downtime and plan maintenance proactively.
WDMS
Alarms.
The WDMS System Alerting Engine proactively scans vast amounts of incoming data, automatically flagging potential issues as they develop. Alarms are organised and categorised by severity, allowing maintenance teams to prioritize critical issues effectively.
Categorised Severity.
Alarms are presented in a colour-coded list, distinguishing between Critical, Error, and Warning levels to streamline response times.
Intelligent Triggering.
Automatically identifies and alerts on system, weighing, and communication anomalies to enable faster troubleshooting and proactive maintenance.
Proactive Notification.
Critical alarms can be configured to send notifications directly to relevant personnel via SMS or email, ensuring immediate awareness of operational discrepancies.
WDMS
Reports.
WDMS transforms raw data into actionable intelligence through a robust suite of reporting tools. Whether for compliance, maintenance, or operational optimisation, the system provides high level and granular reporting capabilities.
Train Manifest Report.
Provides a comprehensive breakdown of every recorded train movement. Users can view detailed statistics including averages, minimums, maximums, and standard deviations for wagon weights, bogie weights, speed, and temperature on a individual wagon basis.
Performance Reports.
Offers a graphical visualisation of system health over a selected date range. This includes comparisons between weighbridges, gross/tare weight performance, and overall system statistics to aid in long-term trend analysis.
General & Custom Reports.
Provides comprehensive reporting tools including comparison analysis, RFID tracking history, and detailed system logs, with export options to Excel and PDF for further analysis and troubleshooting.
Dynamic & Static Calibration Tracking.
Provides a complete audit trail of weighbridge calibration changes, with monthly activity graphs and detailed tables highlighting modified values. Users can compare previous and updated settings to monitor calibration history, maintenance patterns, and system accuracy.
WDMS
Support Desk.
The WDMS Customer Support Desk gives clients and Meridian a shared view of support activity for connected weighing systems. Clients can raise new support requests, follow progress and keep all communication and technical updates associated with the relevant ticket.
Raise and Track Support Tickets.
Clients can create support tickets directly within WDMS, provide the issue details and review the current status without relying on separate email chains.
Shared Activity History.
Clients can add activity, comments and supporting information to an open ticket, creating a clear chronological record of the issue and the actions taken.
Transparent Meridian Updates.
Users can view activity logged by Meridian, including investigation notes, progress updates and completed actions, so both teams are working from the same current information.
Centralised Support Record.
The complete ticket history remains available within WDMS, providing an accessible record of previous issues, responses and outcomes for future reference and ongoing support.
Datasheets
Trackweigh® product family overview.
Need a datasheet?
Contact our team
Contact our team for the latest datasheets and technical information on any Meridian product.
Datasheets
Train loading control for consistent wagon loading.
Need a datasheet?
Contact our team
Contact our team for the latest datasheets and technical information on any Meridian product.
Datasheets
Columnweigh® for bins, tanks and industrial structures
Need a datasheet?
Contact our team
Contact our team for the latest datasheets and technical information on any Meridian product.
Articles
